Standard Potential – AZ63B (H-1)
- ASTM B843 AZ63B: about 90% Mg, 6% Al, 3% Zn
- For lower-resistivity soils, buried pipelines and tank bottoms
- Standard American weights 3, 5, 9, 17, 32, 48, 60 lb (1.4 to 27 kg) and custom
- Steel core with lead wire to your specification
High Potential – M1C
- High-purity magnesium, driving potential about −1.7 V
- Selected for higher-resistivity soils and demanding environments
- Same weights and core options as standard potential

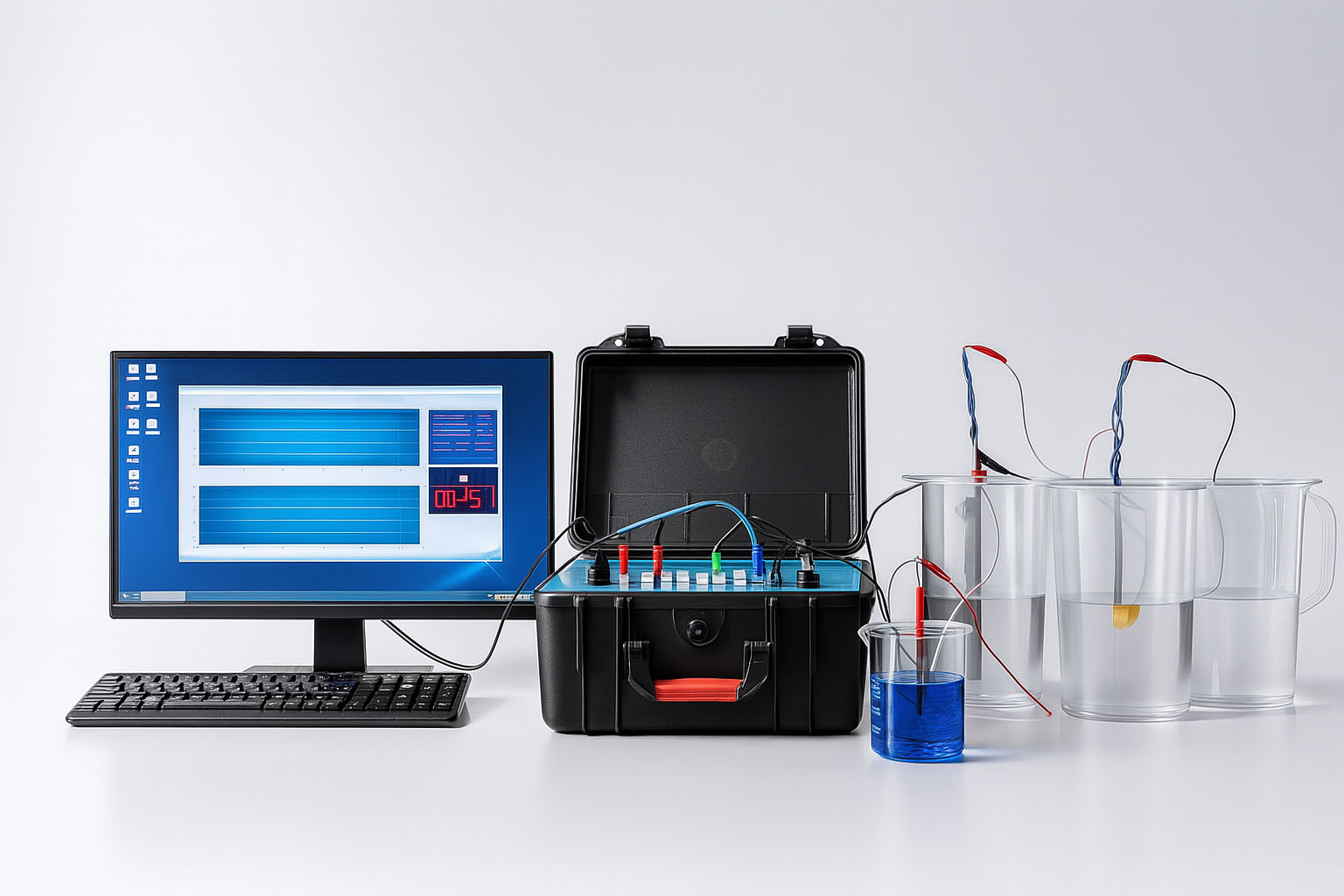

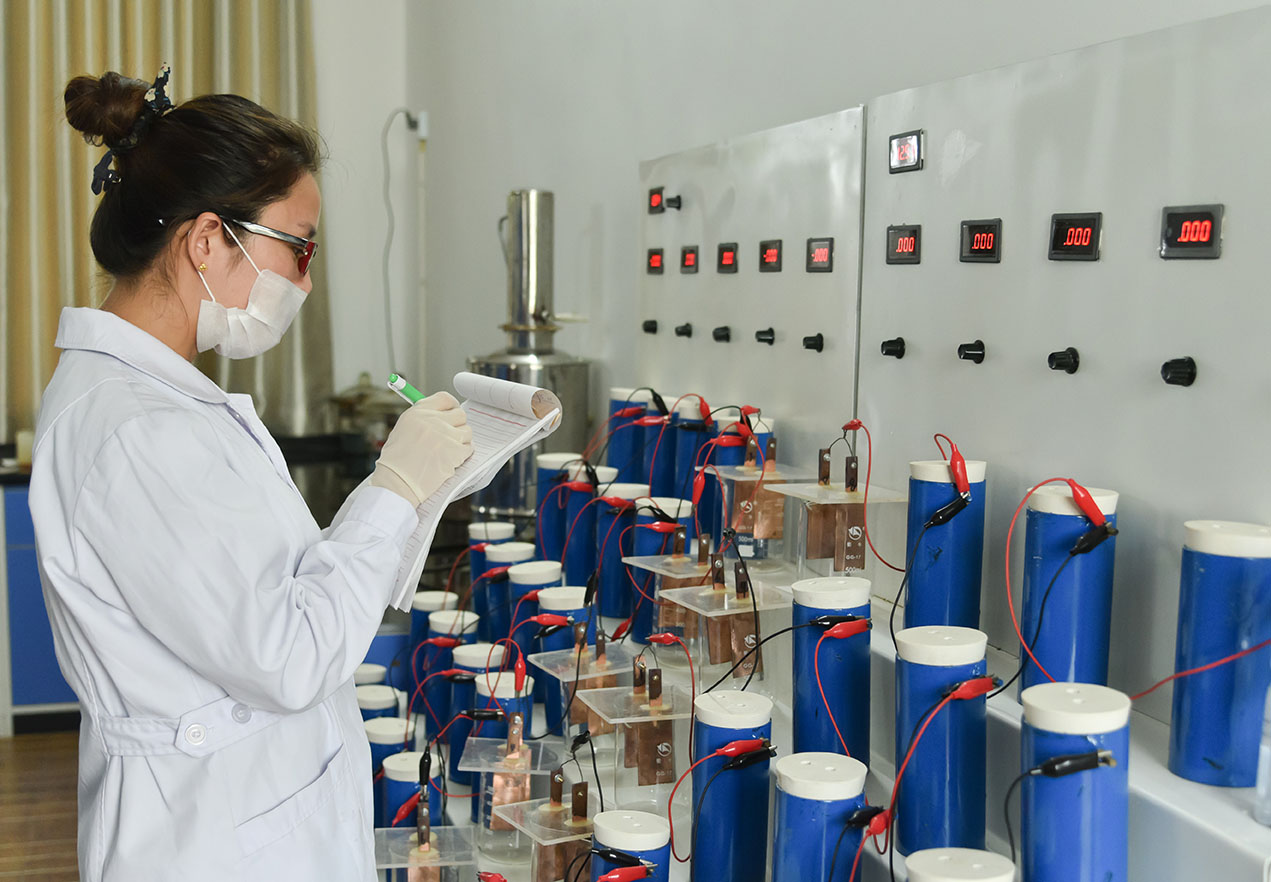

- Chemical analysis and electrochemical test per ASTM B843
Prepackaged Anodes
- Anode in permeable cloth bag with prepared backfill
- Factory-attached lead wire, ready to install in soil
- Bare anodes and loose backfill also supplied
- Export packing on pallets or in wooden cases
Export supply to the USA, Canada, Europe and the Gulf
- DAP or CIF delivered pricing to your port or site; FOB Qingdao on request
- ISPM-15 heat-treated pallets or wooden cases, seaworthy export packing
- COA, material test certificate and certificate of origin with every shipment
- SGS, BV or client-nominated third-party inspection when specified

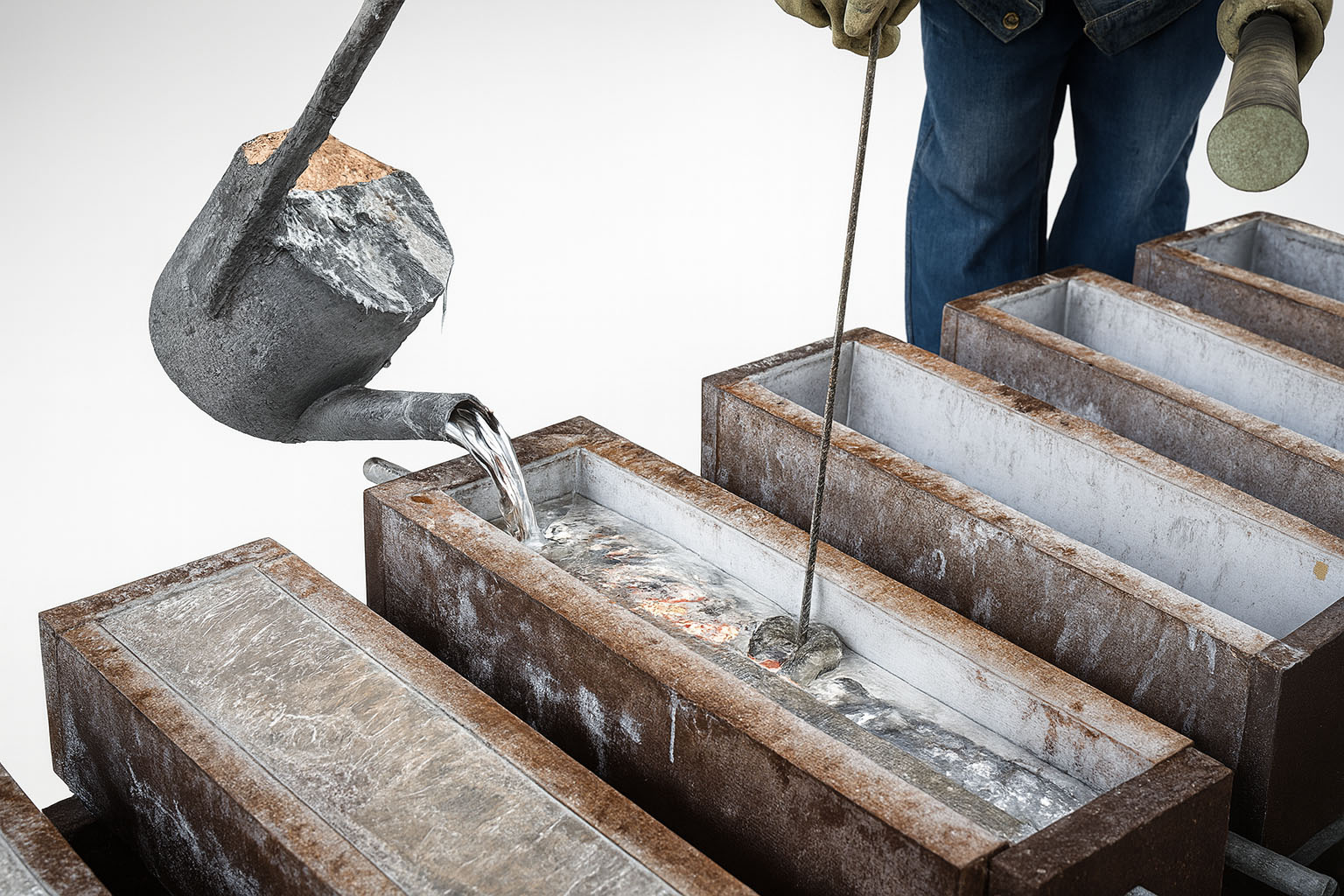

- Imperial and metric weights and threads; drawings reviewed before casting
Details that help us prepare your quotation
Send what you have now. You can confirm the remaining details with us by email or WhatsApp.
| Item | Example |
|---|---|
| Alloy grade | AZ63B standard potential, or M1C high potential |
| Weight or drawing | 17 lb standard, or per attached drawing |
| Bare or prepackaged | Prepackaged with backfill, 3 m lead wire |
| Quantity | 500 pcs |
| Documents | COA, MTC, certificate of origin, third-party inspection |
| Destination | Country and port, e.g. India, Mundra |
We can discuss the specification with you in English before preparing a quotation.
Frequently Asked Questions
Which standard covers magnesium sacrificial anodes?
ASTM B843 is the governing specification. CathPro manufactures both grades under it: standard-potential AZ63B (H-1) and high-potential M1C.
What is the difference between standard-potential and high-potential magnesium anodes?
Standard-potential AZ63B contains about 90% magnesium, 6% aluminum and 3% zinc and is commonly used in lower-resistivity soils. High-potential M1C is made from high-purity magnesium with a more negative driving potential (about −1.7 V), so it is selected for higher-resistivity soils and more demanding environments.
Are prepackaged magnesium anodes available?
Yes. Anodes can be supplied prepackaged in a permeable cloth bag with prepared backfill and factory-attached lead wire, ready for direct installation in soil.
Can magnesium anodes be produced in custom weights and dimensions?
Yes. Standard American weights are available from stock patterns, and non-standard anodes are cast to the customer drawing, including core and insert configuration.
What documents are provided with a magnesium anode order?
Certificate of analysis (COA), material test certificate (MTC) and certificate of origin are issued as standard, with third-party inspection (SGS, BV or a client-nominated agency) available when specified at order stage.
How do I request a magnesium anode quotation?
Start with a drawing, photo or a short description by WhatsApp or email. You can add the alloy grade, weight, quantity, required documents and destination later. We can discuss the remaining specifications with you before preparing a quotation.
Tell us about your project
A drawing, photo or a short message is enough to start. Share the details you already have.
